Dongfeng Mini High Pressure Sewer Flushing Vehicle With High Pressure Jetting Pump 4000Liters
Multifunction High Pressure Washing Type Liquid Suction Truck Is a New Type Vehicle, Which Combined The Water Washing Truck And Vacuum Suction Truck. Except The Use Of Collection, Transfer, Cleaning And Transportation Of Sludge, Sewage, It Can Also Fuction As Washing Truck. Vacuum Sewage Suction Tank Can Be Self-Priming And Self-Draining, The Water Tank Is Equipped With Nozzles, So That The Truck Can Be Used To Clean Up The Street. The High Working Efficiency, Large Capacity, Convenient Transportation,Multifunction Make Vacuum Sewage & Pressure Washing Truck Suitable For Collection And Transportation Of Sewage , Mud, Oil And Other Liquid Substance, As Well As Cleaning And Washing. Vacuum Sewage Tank Adopts Domestic Technology Leading Vacuum Pump That Has Large Suction Power, Wide Suction Range, Especially Applicable For Sewer Sediment Suction, Loading And Unloading. The Most Extinguishing Advantage Is That It Can Suck Sewer Mud, Mud, Stones, Bricks And Other Large Objects.
Pressure cleaning truck, also known for pipeline dredge vehicle, the principle of high pressure cleaning vehicle is by rotating the curvature elastic wire turn into blocked sewer, produced by high pressure water strong pressure to open blocked pipeline, the blockage cloth, hair like that. High pressure cleaning vehicle is mainly used for cleaning the city sewer, pipeline sediment, dead mud ditch dredge, can also be used for cleaning industrial drainage pipe, wall surface, cleaning the road, square ground. The main components of the tank, high-pressure pump, hydraulic system, etc..

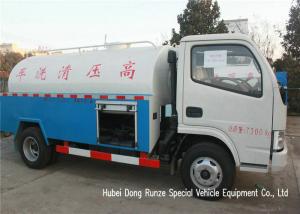

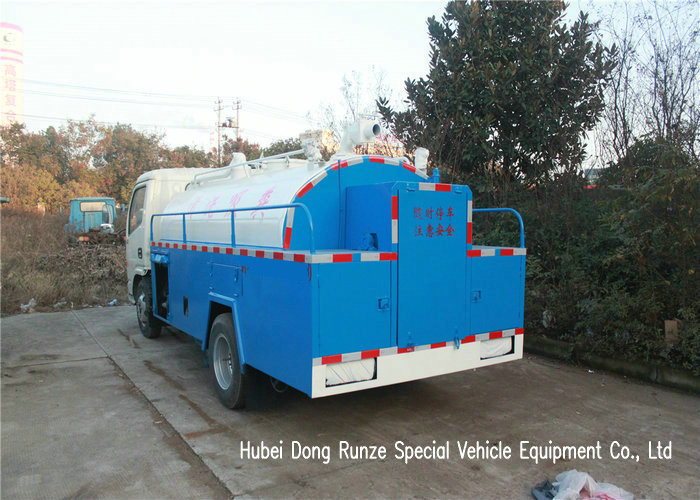

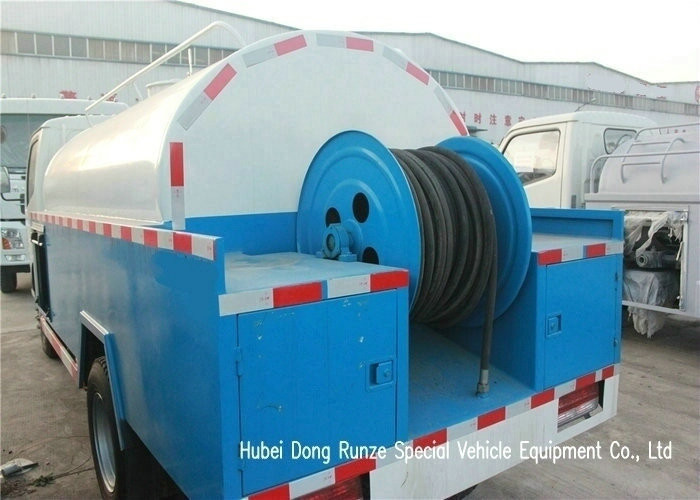

Truck Photo show:
Dongfeng mini high pressure sewer flushing vehicle
| Brand | Dongfeng | Drive type | 4x2 LHD/RHD |
| Total mass | 7300kg | Tanker capacity | 4000L(4cbm) |
| Rated load | 3650kg | Material of tank | WISCO steel |
| Curb weight | 3520kg | Overall dimension | 6210×2030×2450mm |
| Wheel base | 3300mm | F/R axle load | 2920/4380kg |
| Quantity of leaf spring | 8/9+5 | Quantity of wheels | 6+1 |
| Tyre type | 7.00-16 | Approach/ Departure angle | 19/14° |
| F/R suspension | 1032/1878mm | Front track | 1506mm |
| Rear track | 1466mm | Max.vehicle speed | 95km/h |
| Passengers in cab | 2 | Chassis model | DFA1070SJ35D6 |
| Engine | Model | YN33CRD2 |
| Max.power | 75kw/102HP |
| Displacement | 3298ml |
| Emission level | Euro 4 |
| Description | In line ,4 cylinders,4 strokes,water cooled,inter cooled, turbo charged,diesel engine |
| Gearbox | Description | Manual,5 forward &1 reverse gears |
| Brake system | Service brake | Double circuit pneumatic (air) brake |
| Parking brake | Spring-Power drum brake |
| Electric system | Operating voltage | 24V negative grounded |
| Starter | 24V,5.4KW |
| Alternator | 28V,1.5KW |
| Battery voltage | 2X12V/165Ah |
| Cabin | Description | Single row,standard configuration,power steering,A/C optional |
Dongfeng 4x2 5000L High Pressure Cleaning Truck
| Vehicle parameters |
| Vehicle Model | DRZ5090GQXE | Vehicle Brand | DRZ |
| Overall dimensions | 7000×2285×2500mm | Curb weight | 4405kg |
| Tank dimensions | 1600×1800×1250mm | Tank volume | 5000L |
| Chassis parameters |
| Chassis model | EQ1090T9ADJ3AC | Chassis brand | DONGFENG |
| Overall dimensions | 6695x2180x2350mm | Wheel base | 3800mm |
| Front/rear wheel track | 1750/1586mm | Front/rear suspension | 1180/1715mm |
| Approach/departure angle | 22/13° | Maximum speed | 80km/h |
| Chassis Manufacturer | Dongfeng Automobile Co.,Ltd |
| Cab | Configuration | Single row cab,air conditioner,allowable 3 passengers,cab can be flipped |
| Color | White,other color is optional |
| Engine | Model | CY4102-E3C |
| Emission | Euro 3 |
| Type | 4 cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine |
| Rated power | 120hp,rated power speed 2800rpm |
| Displacement | 3856ml |
| Bore x stroke | 102x118mm |
| Manufacturer | Dongfeng Chaoyang Diesel Power Co. Ltd. |
| Tire | Size | 7.50R16,steel wire tire |
| Number | 6+1 nos |
| Frame | 192mm |
| Brake | Air break, electronic flame out, exhaust brake |
| Fuel tank | 100L,steel |
| Front axle | 2.4T |
| Rear axle | 4.2T |
| Drive form | 4X2 |
| Rated voltage | 24V,DC |
| Transmissions | 5 speed forward 1 reverse. |
| Steering device | Power assisted steering |
| Steering wheel | Left hand drive |
| Selective configuration | Air Conditioner, Cummins engine B140 33(140hp) |
| If there is a slight change in the chassis parameters above,please take the actual product as the standard |
| Pressure washing tank structure parameters |
| Tank dimensions | 1600×1800×1250mm | Tank volume | 5000L |
| Tank material | Carbon steel | Tank thickness | 4/5mm |
| Color and Logo | Optional | | |
| Italy UDOR plunger pump |
| Model | VX-B 130/160 R-L | RPM | 1000r/min |
| Flow | 124L/min | Pressure | 16Mpa |
| Power | 37.4kw | Weight | 57kg |
| Standard configuration | Chassis,sub frame,pressure washing tank,Italy UDOR plunger pump VX-B 130/160 R-L,reel with 60 meters pressure hose,10 units stainless steel high pressure nozzles,tool box. |
| MOQ,payment terms,delivery terms,price |
| MOQ | One unit |
| Payment terms | T/T 30% down payment, 70% balance after inspection before delivery |
| Inspection | Buyer's agent or third party inspection agency,the cost is paid by the buyer |
| Delivery term | 35working days from down payment |
| Documentation | Maintenance manual |
| User manual |
| Packing list |
| Commercial invoice |
| Certificate of origin is optional |
| Spare parts list for purchase is optional |
| Standard tools | With standard tools for chassis and vacuum suction and pressure washing tank structure |
| Packing | The main vehicle nude and covered with wax, attached parts and tools put into standard export box |
| Other requirements | Please fill in here |
| FOB | USD |
| CIF | USD | Shipment | |
| Because exchange rate and ocean freight may be changed in near future,so the price is only valid for 15 days. Please confirm the price again with our company before placing the order,thanks. |
FAQ
·MOQ:1 SET
·Delivery date:25 workdays after we received deposit.
·Payment term:
1. 30% contract value as the deposit by T/T,70% contract value payoff before delivery after production finish.
2. 50% contract value as the deposit by T/T,50% contract value payoff before delivery after production finish
