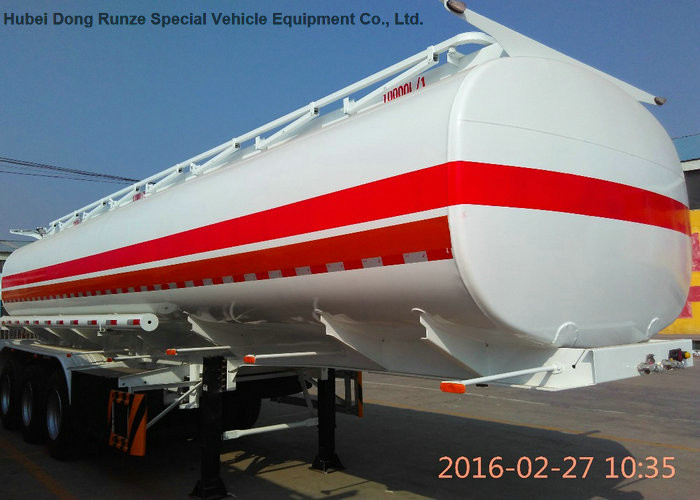

49m3 Stainless Steel Fuel Tanker Semi Trailer 3 Axles For Diesel ,Oil , Gasoline, Kerosene Transport
Contact
Cell 008615271357675
WhatsApp: 8615271357675 tictrucks#gmail.com
Wechat:king253725877 ; skype tomsongking
All Specification And Design Can Be Customized !
Advantages:
1. The Fuel Tanker Trailers Transportation With High Efficiency,Strict Testing Of Weld Sealing Solid Tyre, High Elastic, Wear-Resisting.
2. The Axles Can Be Fuwa / Bpw With Different Tonnages By Your Need With Price Differences. The Suspensions Can Be: Air Suspension, Mechanic (Leaf Spring Suspension) Etc.
3. The Loading Deck Can Be Concave Beams, Tire Appeared Cover, Totally Flatbed, Or Extendable. The Loading Ramps Can Be Rear End Designed, Or Front Loading Ladders, Which Can Be Mechanic Spring Ladders And Hydraulic Loading Ramps By Different Needs.
4. The Material Of The Tank Can Be Aluminum Alloy, Carbon Steel Etc.
Trailer description
| 30,000L-45,000L 3-axle Tank Semi-trailer |
| Feature: | Carry Fuel, Oil, Diesel, Drink water, Milk, Beer and other chemical liquid |

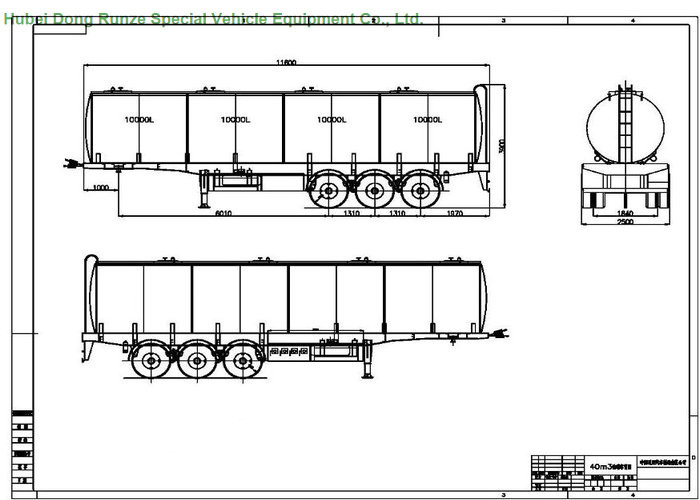

| Dimension(L*W*H): | 11000*2500*3700mm(30,000L) 11700*2500*3750mm(40,000L) 12700*2500*3750mm(50,000L) 13000*2500*3750mm(60,000L) 13700*2500*3750mm(70,000L) |
| Model | DRZ9350GRY |
| Material: | Carbon Steel | Stainless Steel | Aluminum |
| Compartment: | 3-6 |
| Capacity(kgs): | 35,000L-45,000L |
| Tare weight(kgs): | 10,000-11,000kgs | 10,000-11,000kgs | 6,000-7,000kgs |
| Kingpin | The world-famous JOST brand bolt-in/welded type 3.5”/2” |
| Landing gear | JOST brand two-speed manual operation 19” |
| Tire size | 11.00R20,11R22.5,12R22.5,315/80R22.5,385/65R22.5 |
| Rim size | 8.25*22.5,9.00*22.5,11.75*22.5 |
| Axle | Original BPW-12T/ FUWA-13T |
| Leafs spring | Germany type with 12pcs of leafs spring/ Fuwa brand with 8pcs of leafs spring/ Airbag suspension |
| Brake system | One unit WABCO RE 4 relay valve; four units T30/30 spring brake chamber; two units T30 spring brake chamber; two units reliable local brand 45L air tank; two units reliable local brand standard coppery air-connector. |
| Manhole: | Aluminum alloy ø500mm(20”) manhole with aluminum alloy cover; with breather valve; |
| Discharge Valve | Aluminum alloy discharge valve with cover |
| Foot Valve | Pneumatic control DN80 aluminum alloy foot valves |
| Pneumatic Control system | 1set Pneumatic Control combined switch 1unit emergency switch |
| Discharge Hose | 2 units 3”×6M factory PVC hose with quick coupling on both ends |
| Vapor Recovery & Overfill system | Optional |
| Fire Extinguisher Carrier | 2 units at the left of rear of tanker, include 2 units 8kg dry powder type fire extinguisher inside |
| Electric system: | One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable |
| Prime & Topcoat painting | S.A.2.5standard sandblasting ;Zinc-rich & Polyurethane painting |
| We can build the trailers according to customer’s design and requirement |
Loading and Packing
Warranty period and after sale service
FAQ
·MOQ:1 SET
·Delivery date:25 workdays after we received deposit.
·Payment term:
1. 30% contract value as the deposit by T/T,70% contract value payoff before delivery after production finish.
2. 50% contract value as the deposit by T/T,50% contract value payoff before delivery after production finish
Cell: 0086 152 7 135 7635 ; 0086 152 7 135 7675
WhatsApp: 8615271357675 tictrucks#gmail.com
